The MDV Series DC Axial fans easily allow for changes in fan speed. They employ a PWM control method by which speed is changed with a PWM control circuit (not supplied).

The MDV Series is available in frame sizes from 2.36 in. (60 mm) up to 4.72 in. (120 mm).

  • Variable Speed for PWM control circuit (not supplied)
  • 24 VDC
  • Built-in Pulse Sensor

Product Lineup

Frame Size

Power Supply

Options

Max Air Flow

Max Static Pressure

60 mm axial fan

2.36 in.
(60 mm)

24 VDC

Pulse Sensor

42.7 CFM
[100% PWM Duty]

12.7 CFM
[0% PWM Duty]

1.21 m3/min
[100% PWM Duty]

0.36 m3/min
[0% PWM Duty]

0.899 inH2O
[100% PWM Duty]

0.081 inH2O
[0% PWM Duty]

224 Pa
[100% PWM Duty]

20.2 Pa
[0% PWM Duty]

80 mm axial fan

3.15 in. (80 mm)

24 VDC

Pulse Sensor

74.8 CFM
[100% PWM Duty]

17.7 CFM
[0% PWM Duty]

2.12 m3/min
[100% PWM Duty]

0.5 m3/min
[0% PWM Duty]

0.694 inH2O
[100% PWM Duty]

0.041 inH2O
[0% PWM Duty]

173 Pa
[100% PWM Duty]

10.3 Pa
[0% PWM Duty]

92 mm axial fan

3.62 in. (92 mm)

24 VDC

Pulse Sensor

77.7 CFM
[100% PWM Duty]

23.0 CFM
[0% PWM Duty]

2.2 m3/min
[100% PWM Duty]

0.65 m3/min
[0% PWM Duty]

0.421 inH2O
[100% PWM Duty]

0.037 inH2O
[0% PWM Duty]

105 Pa
[100% PWM Duty]

9.4 Pa
[0% PWM Duty]

119 mm axial fan

4.72 in. (120 mm)

24 VDC

Pulse Sensor

224 CFM
[100% PWM Duty]

6.35 m3/min
[100% PWM Duty]

1.45 inH2O
[100% PWM Duty]

360 Pa
[100% PWM Duty]




Variable Speed DC Axial Fans

Speed Control Using PWM Control

The speed changes according to the duty ratio of the input pulse signals. This allows the air flow and static pressure to be adjusted, resulting in a reduction in noise and power consumption.

Pulse Sensor Type

Outputs a pulse signal while the cooling fan is rotating. Two pulses are output per revolution of the fan. Fan speed is monitored as the host controller, etc., reads the output pulses. This function helps you set a desired output speed for alarm activation.

Axial Fans

Axial fans use a propeller to generate airflow in the direction of the axis of rotation. Capable of generating a large air flow, axial fans are suited for applications requiring ventilation cooling.

Axial Fans

Device Ventilation and Cooling

The large airflow of axial fans is suitable for ventilation and cooling inside electronic devices.

Ventilation


Thermostat Available for Energy Saving

Thermostats (sold separately) make it possible for fans to operate only when cooling is necessary. Thermostats provide energy-saving by automatically stopping fans for example, at night, when the amount of heat generation declines following the load rate's decline in equipment, or in winter, when the ambient temperature drops and forced cooling is not necessary.



Thermostat

Thermostat

Thermostats automatically perform ON/OFF fan control in accordance with the temperature fluctuation inside the equipment. It helps improve the equipment's "environmental" performance relative to energy savings, noise reduction, etc.

Type

Item

Fahrenheit (°F)

AM2-WA1

Centigrade (°C)

AM2-XA1



Finger Guards

Finger Guards

Finger guards prevent fingers or foreign objects from entering the fan. Finger guards are mounted to the fan frame using bolts.

Fan Model

Finger Guard

MDV625

FG6E

MDV825

FG8D

MDV925

FG9D

MDV1238

FG12D



Filters

When using a fan to cool machinery, dust may accumulate inside the machinery after long periods of operation. Depending on the parts involved, this could cause a malfunction. These filters prevent dust from entering the device, keeping the air inside the machinery dust free.

Fan Model

Filter

MDV625

FL6

MDV825

FL8

MDV925

FL9

MDV1238

FL12



Screen

Screen

Fans are used to cool or ventilate electronic devices that may generate electromagnetic waves. These waves can escape from the fan cooling holes, causing interference to computers and measuring instruments. The screens allow the passage of air but block electromagnetic waves.

The screen is a durable magnetic shield using a stainless mesh fixed to an aluminum frame. Screens are easily attached to the fan using screws.

Fan Model

Screen

MDV625

FS6S

MDV825

FS8S

MDV925

FS9S

MDV1238

FS12S

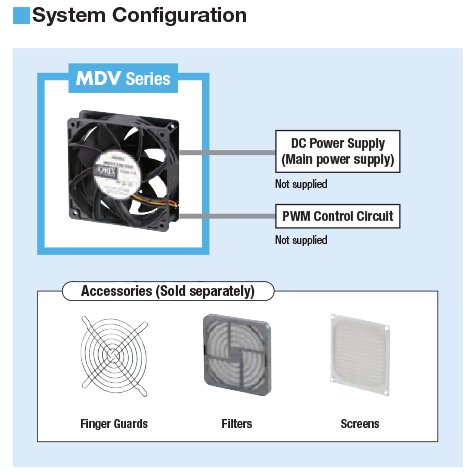

System Configuration

System Configuration



CAD / Manual Search

To locate product CAD and Operator Manuals please search using the product Item Number.
