Controllers - EMP400 Series Stored Program Controller

The EMP400 Series controllers allow for easy programming using simple commands. The dual axis model provides coordinated moves via linear interpolation. Using RS232C with or without optional operator interface unit OP300, various motion profiles can be achieved by using up to 32 sequence programs.

One program can be dedicated as a STARTUP program. The EMP400 Series is designed for optimal performance with any of Oriental Motor's standard pulse input drivers.

Safety MarksView Product


Pulse Oscillation

Pulse Oscillation

Various operation commands are provided for positioning operation, return-to-home operation and dual axis linear interpolation functions. The operator only needs to set the parameters on the controller to make it perform as desired.

Sequence Function

A series of operation patterns can be programmed using dedicated commands. This is an ideal function for distributed system control.

I/O Control

General-purpose I/O signals are provided in addition to dedicated I/Os such as pulse output and limit-sensor input. Synchronization with peripherals is also possible.

Pulse Oscillation

Jerk Limit Control

Fast Response Time

The time between a START signal input and a pulse output is 2 ms or less.

High-Speed Positioning & Low Vibration

The jerk-limit control function allows you to set a shorter acceleration/deceleration time compared with the use of linear acceleration/deceleration patterns. This reduces the overall positioning time.

What is jerk-limit control?
This term refers to the acceleration/deceleration patterns used to ensure the smoothness of speed change at the start of operation or when the machine enters a constant-speed mode from an acceleration mode. Since speed can become smoother, vibration is reduced.

Positioning Operation

Supports both incremental modes (travel amount) and absolute mode (absolute-position).

Linear Interpolation Operation

Two axes are controlled simultaneously, allowing direct movement to a target position.

Linear Interpolation

Operator Interface Unit OP300

Set the travel amount via teaching or monitor the current position. The unit comes with a 2 m (6.6 ft.) cable for connection with the EMP400 Series.

operatore interfacecables





Teaching Function

The amount of travel can be changed by jogging the load into position via the optional OP300 interface.

Teaching Function





Product Lineup

Controller

Model

Number of Axes

Connector

EMP401

EMP401-1

Single Axis without connectors

EMP401-2

with connectors
EMP401

EMP402-1

Dual Axis without connectors

EMP402-2

with connectors



EMP400 Series Stored Program Controller

The EMP400 is designed to work with a wide range of motion control solutions:

Stepper Motors

Stepping Motors

Linear & Rotary Actuators

Linear & Rotary Actuators

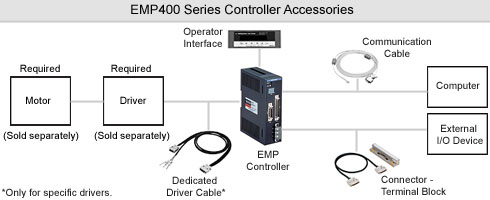

System Configuration

Build a complete system online by selecting your base motor and driver and adding all necessary accessories and/or controller.

Build a System

Operator Interface

Operator Interface

Set the travel amount via teaching or monitor the current position. The unit comes with a 6.6 ft. (2 m) cable for connection to the EMP400 Series.

Control Module OP300

Communication Cable

Communication Cable

This is a 16.4 ft. (5 m) cable with a D-sub 9 connector at one end for the RS-232C communications between the PC and the EMP400 controller.

Dedicated Driver Cables for EMP Series*

Driver Cables

One end of the cable is a half-pitch connector that snaps into the driver for the RK Series. The other end of the cable is equipped with the connector for the EMP400 Series controller.

*For use with RK Series Driver.

Model Connector Length
CC01EMP5 CN1 (20 pins) 3.3 ft. (1 m)
CC02EMP5 6.6 ft. (2 m)



Communication Cable FC04W5

Connector - Terminal Block

CC50T1

The EMP400 Series and programmable controller can be connected via a terminal block.

Terminal Block CC50T1
