Features
The EMP400 Series controllers allow easy programming using simple commands. The dual axis model provides coordinated moves via linear interpolation.
Various motion profiles can be achieved by using up to 32 sequence programs. 1 program can be dedicated as a STARTUP program allowing for stand alone operation. The EMP400 series features 8 programmable inputs and 6 programmable outputs. The EMP400 series can be programmed from a computer or ASCII terminal via a standard RS-232C port.

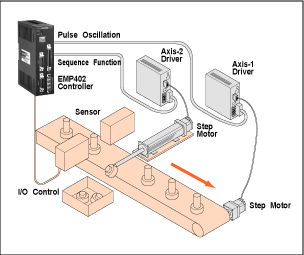

Pulse Oscillation
Various operation commands are provided for positioning operation, return-to-home operation and dual axis linear interpolation functions. The operator only needs to set the parameters.

Sequence Function
A series of operation patterns can be programmed using dedicated commands. This is an ideal function for distributed system control.

I/O Control
General-purpose I/O signals are provided in addition to dedicated I/Os such as pulse output and limit-sensor input. Synchronization with peripherals is also possible.
