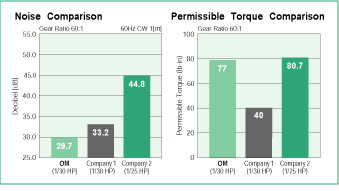

Quiet Operation The V Series utilizes a comprehensive set of noise-reduction technologies: a special tooth-surface machining technology to remove cutting marks of 1 to 2 µm from the surface of the motor shaft teeth, an optimized quiet-running design that considers the circular speed of the motor while maintaining its strength, and a high-accuracy assembly technology that ensures precision at micron levels.

High Strength, Long Life
The motor's considerable strength has resulted from the use of a rigid case, a proprietary side-panel construction and an optimized gear design. Moreover, the use of a larger diameter bearing serves to extend its useful life.

Higher Maximum Permissible Torque by up to Three Times*

The high-strength design of the V Series is made evident through its maximum permissible torque, which has been increased up to three times* the level of the GN type gearhead, and two times the level of the GU type gearhead. Even if the load condition is changed to a level that normally requires a higher amount of gearhead strength, the V Series can accommodate such a change without the need to increase the size of the motor or gearhead. *Specific torque is dependent on frame size.

Designed for Long-Term Performance (10,000 hours)
Each model in the V Series is designed to last for 10,000 hours when driven at the maximum permissible torque. That's twice the design life of Oriental Motor's GN and GV type gearheads. This results in a considerable savings in time and effort with regard to maintenance.

Combination Type (Pre-Assembled Gearmotors)
As an added convenience to compliment high quality and performance, each motor in the V Series comes pre-assembled with a gearhead to make installation easy.
