Speed Control AC Motors & Gearmotors
AC Motor Speed Controllers - US Series
The US Series is a panel mounted control unit and speed control motor package, which conforms to the ROHS Directive. Wiring is performed by connecting with easy-to-use connectors. This series is optimal for easy speed control applications.
Easy Connection
The operation is possible just by connecting the control unit into the power supply after connecting the motor and control unit through easy-to-use connectors.
Easy Operation
The speed can be set easily with the potentiometer on the front panel of the control unit.
Variable Speed Range
50 Hz: 90 to 1400 r/min
60 Hz: 90 to 1600 r/min
Protective Earth Terminal on Motor
A Protective Earth terminal is provided on the 6 W (1/125 HP up to 40 W (1/19 HP) motors.
Long Life, Low Noise GN-S Gearhead Available
The new "long life, low noise GN-S gearhead" achieves a long rated life of 10,000 hours, twice the level of a conventional gearhead, by adopting innovative technologies and structure. Parallel Shaft models.
Available for 6 W ~ 40 W (1/125 HP ~ 1/19 HP) motors.
Approved by Major Safety Standards
The US Series is recognized by UL and CSA. Models certified under the China Cumpulsory Certification (CCC) System are also available. CE Marking is used in accordance with the Low Voltage Directive and EMC Directive.
Product Lineup
Select Power Supply / Motor Frame Size below to view available products.
Type |
Output Power |
Power Supply (VAC) |
Permissible |
Variable |
 Parallel Shaft Gearhead |
6 W (1/125 HP) |
1.06 ~ 26 lb-in |
Motor Speed Range: 90 ~ 1600 Min: 0.5 (180:1) Max: 533 (3:1) |
|
15 W (1/50 HP) |
2.6 ~ 44 lb-in (0.3 ~ 5 N·m) |
|||
25 W (1/30 HP) |
4.3 ~ 70 lb-in (0.49 ~ 8 N·m) |
|||
40 W (1/19 HP) |
5.5 ~ 88 lb-in (0.63 ~ 10 N·m) |
|||
60 W (1/12 HP) |
10.6 ~ 177 lb-in (1.2 ~ 20 N·m) |
|||
| 90 W (1/8 HP) | 15.9 ~ 177 lb-in (1.8 ~ 20 N·m) |
|||
Type |
Output Power |
Power Supply (VAC) |
Permissible |
Variable |
 Right-Angle Solid Shaft Gearhead |
25 W (1/30 HP) |
2.6 ~ 70 lb-in (0.3 ~ 8 N·m) |
Motor Speed Range: 90 ~ 1600 Min: 0.5 (180:1) Max: 533 (3:1) |
|
40 W (1/19 HP) |
4.6 ~ 88 lb-in (0.53 ~ 10 N·m) |
|||
60 W (1/12 HP) |
8.8 ~ 177 lb-in (1.0 ~ 20 N·m) |
|||
| 90 W (1/8 HP) | 13.2 ~ 177 lb-in (1.5 ~ 20 N·m) |
|||
 Right-Angle Hollow Shaft Gearhead |
25 W (1/30 HP) |
2.1 ~ 70 lb-in (0.24 ~ 8 N·m) |
Motor Speed Range: 90 ~ 1600 Min: 0.5 (180:1) Max: 533 (3:1) |
|
40 W (1/19 HP) |
3.4 ~ 88 lb-in (0.39 ~ 10 N·m) |
|||
60 W (1/12 HP) |
6.5 ~ 177 lb-in (0.74 ~ 20 N·m) |
|||
| 90 W (1/8 HP) | 9.7 ~ 177 lb-in (1.1 ~ 20 N·m) |
|||
Type |
Output Power |
Motor Frame Size |
Permissible |
Variable |
 Round Shaft |
6 W (1/125 HP) | 7.1 oz-in |
90 ~ 1600 90 ~ 1400 |
|
| 15 W (1/50 HP) | 17.7 oz-in |
|||
| 25 W (1/30 HP) | 29 oz-in |
|||
| 40 W (1/19 HP) | 42 oz-in |
|||
| 60 W (1/12 HP) | 69 oz-in |
|||
| 90 W (1/8 HP) | 103 oz-in |
*Permissible Torque values vary with input voltage and motor speed, not all values are shown. Refer to product's speed-torque chart for more details.
View Products = View all US Series products.

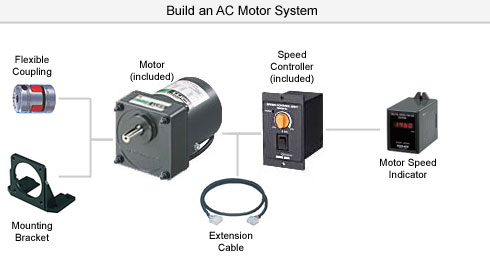

Build a complete system online by selecting your base motor and driver and adding all necessary accessories and/or controller.
Couplings / Brackets
These products are clamp type couplings used to connect a motor or gearhead shaft to the shaft of the equipment.
This is an aluminum die cast mounting bracket for geared motors.
Long, horizontal holes make it easy to make fine adjustments during installation.
Motor Speed Indicator
Used for displaying and checking the speed.
Motor Speed Indicator |
|
DIN Rail Mount |
Extension Cables
Extension cables for connecting the US Series motor and control unit. Two types are available depending on the motor output power.
Motors include 10 in. (250 mm) cable. The maximum extension length is 15.6 ft. (4.75 m).
Torque Arm
In order to prevent gearheads from rotating due to the reactive force of the shaft being driven, the torque arm acts as an anti-spin mechanism when a right-angle, hollow shaft type gearhead is installed.
For use with 5GU_RH gearheads.
Torque Arm |
Technology Training Videos
ORIENTAL MOTOR offers monthly Live Seminars as well as On Demand Training Videos.
To view the On Demand Videos you will need register or log in above.
Related Seminar Videos
NEW! 2012-2013 General Catalog Available
More Products
More Solutions
Ships Next Business Day
Motor Sizing Tools
Product Catalog (PDF)
Technology Articles
- AC Motor Glossary of Terms
- Speed Control Methods of Various Types of Speed Control Motors
- More Articles
Reference (PDF)
