Brushless Motors

Wide Speed Control Range

The BLH Series adopts a unique motor structure design to achieve a wide speed variation range. The motor of the BLH Series can be operated at varying speeds of 100 to 3000 r/min (speed ratio 30:1).

Slim, Yet Powerful

A permanent magnet is assembled into the rotor, so the brushless motor can produce high power from its slim body. The compact unit allows for downsizing of applications.

Excellent Speed Stability

The driver adjusts the current flow to the motor by comparing the feedback signal of the motor speed against the set speed, in order to stabilize the motor speed. This mechanism ensures stable driving speeds from low to high, even in situations where the load condition fluctuates. With the BLH Series the speed regulation is ±0.5%.

No Brushes = No Maintenance

The motors do not utilize brushes, which often require replacing and/or maintenance, saving time and cost.

Energy Saving

The brushless motor has a permanent magnet assembled into the rotor, so it produces low secondary loss. The BLH Series will contribute to the energy-saving operation of your equipment.

IP65 Protection*

The motor is protected against water intrusion should water come into contact with the motor.

The motor must not be washed with water and is not suitable for use in an environment where it constantly comes into contact with water.

*IP40 for 15 W (1/50 HP) motor

Compact Board-Type Driver

The models with an output of 1/50 HP to 1/15 HP (15 to 50 W) adopt a compact, board-type driver smaller than the size of business card.
The 1/8 HP (100 W) driver is also compact and has dimensions of
2.80 in. [71 mm] (D) x 5.16 in. [131 mm] (W) x 1.48 in. [37.5 mm] (H)

Full Range of Driver Functions

The compact driver is packed with a full range of functions.

• Instantaneous stop
• Speed control via potentiometer
• Speed control by DC voltage
• Acceleration/deceleration time setting
• Alarm output

Gearing Options

Long Life Gearhead

The high-strength gearhead is designed to withstand high-speed revolutions. The rated life of the gearhead is 10000 hours*, which is twice as long as that of our previous gearhead.

*5000 hours for gearhead equipped with 15 W (1/50 HP) motor.

Up to 260 lb-in of Torque Possible
[100 W (1/8 HP) Motor with Parallel Shaft Flat Gearhead]

Hollow Shaft Flat Gearhead

Space-Saving and Low-Cost
The output shaft can be coupled directly to your drive shaft without using a coupling. The flexible installation modes, such as installation on either the front or rear face or by using the center shaft, allows you to reduce the size and installation space of your equipment. Since no shaft-coupling parts are needed, the parts cost and assembly man-hours will also decrease.

High Permissible Torque
While the parallel shaft gearhead lets the permissible torque saturate at high gear ratios, the hollow shaft flat gearhead enables the motor torque to be utilized to its maximum capability.

Up to 600 lb-in of Torque Possible
[100 W (1/8 HP) Motor with Hollow Shaft Flat Gearhead]

Product Lineup

Select Motor Frame Size to view available products.

Round Shaft	Output Power	Motor Frame Size	Rated Torque	Speed Range
	15 W ( 1/50 HP)	1.65 in. (42 mm)	7.1 oz-in (0.05 Nm)	100 ~ 3000 r/min
	30 W ( 1/25 HP)	2.36 in. (60 mm)	17 oz-in (0.12 Nm)
	50 W ( 1/15 HP)	3.15 in. (80 mm)	28 oz-in (0.2 Nm)
	100 W ( 1/8 HP)	3.54 in. (90 mm)	56 oz-in (0.4 Nm)

Parallel Shaft Gearhead	Output Power	Motor Frame Size	Rated Torque	Speed Range
	15 W ( 1/50 HP)	1.65 in. (42 mm)	2.0 ~ 17.7 lb-in (0.23 ~ 2 N·m)	Motor Speed Range: 100 ~ 3000 r/min   Min: 0.5 [200:1] Max: 600 [5:1]
	30 W ( 1/25 HP)	2.36 in. (60 mm)	4.7 ~ 53 lb-in (0.54 ~ 6 N·m)
	50 W ( 1/15 HP)	3.15 in. (80 mm)	7.9 ~ 141 lb-in (0.9 ~ 16 N·m)
	100 W ( 1/8 HP)	3.54 in. (90 mm)	15.9 ~ 260 lb-in (1.8 ~ 30 N·m)

Hollow Shaft Flat Gearhead	Output Power	Motor Frame Size	Rated Torque	Speed Range
	30 W ( 1/25 HP)	2.36 in. (60 mm)	4.2 ~ 150 lb-in (0.48 ~ 17 N·m)	Motor Speed Range: 100 ~ 3000 r/min   Min: 0.5 [200:1] Max: 600 [5:1]
	50 W ( 1/15 HP)	3.15 in. (80 mm)	7.5 ~ 300 lb-in (0.85 ~ 34 N·m)
	100 W ( 1/8 HP)	3.54 in. (90 mm)	15 ~ 600 lb-in (1.7 ~ 68 N·m)

View Products = View all available part numbers for BLH Series Brushless Speed Control Systems

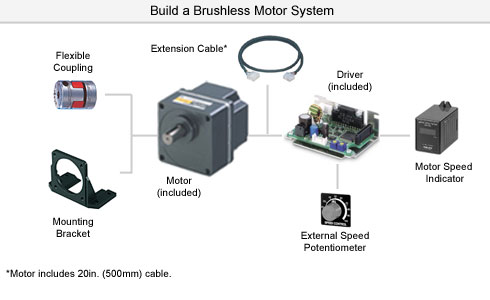

Build a complete system online by selecting your base motor and driver and adding all necessary accessories and/or controller.

Motor Speed Indicator

Used for displaying and checking the speed.

Cables

Extension Cables

These cables extend the distance between the motor and driver. *The motor includes a 20 in. (500 mm) cable.

External Speed Potentiometer

PAVR-20KZ

Potentiometer used for setting the speed control motor.
