Large Transportable Mass

The EZC II series can perform positioning of loads with a large transportable mass.

EZC6 (Lead 6mm)

• Maximum Transportable Mass* :
  • Horizontal 60 kg
  • Vertical 30 kg
• Maximum Thrust Force: 400 N
• Maximum Push Force: 500 N

*when external guide is used.

High Speed

The EZC II series can perform positioning at high speed. EZC4 / EZC6 (Lead 12 mm)

• Maximum Speed: 600 mm/s
• Sensorless Return to Home at Speed of 100 mm/s

We have developed a dedicated stop buffer to achieve sensorless return to home operation at a maximum speed of 100 mm/s.

Space-Saving

The shape of the motor cable outlet was changed to eliminate dead space. The total length of the cylinder is shorter for every stroke or model, which enables space-saving design of your equipment.

Quick Lead Time, Guaranteed!

Need this product quick? Oriental Motor offers the best lead times in the industry. This product is available to ship within 7 business days (1-5 pcs.). Order online or contact your local sales office.

Lightweight Construction

Integrating a motor with a linear motion mechanism, this type of actuator is ideal for applications where the load is pushed or pulled. Use of an aluminum rod reduced the weight by 25% compared to a conventional model.

Stroke Lengths

Easy Wiring

The linear slide and controller are connected via a single cable and the wiring distance can be extended to a maximum of 20 m (10 m for 24 VDC products). The cable is fitted with a connector for quick connection.

Maintenance-Free for Long-Term Performance

The ball screw employs the QZ™ lubrication system: high-density fiber net supplies appropriate amounts of oil, thereby preventing oil wastage and reducing environmental burden.

• QZ is a registered trademark of THK Co., Ltd.

Supporting Sudden Load Fluctuation and Rapid Acceleration

Adopting a closed loop AlphaStep stepper motor designed to maintain synchronism, the EZC II Series actuator eliminates the need for tuning to prevent hunting upon sudden load fluctuation or rapid acceleration.

A built-in rotor position detection sensor constantly monitors the motor speed and position. If synchronism is about to be lost, closed-loop control is implemented immediately. With the EZC II Series you can also enjoy greater reliability because the positioning completion signal and position detection function can be used to check the actuator condition.

Stable operation can be achieved without adjustment, even when your equipment is subject to load fluctuation.

Electromagnetic Brake Available

The EZC II Series has an electromagnetic brake option, pre-assembled to the back of the motor. The electromechanical brake option is ideal for vertical applications. A separate circuit to control the brake is not required. The electromagnetic brake is released (OFF) when the motor start input is activated and applied (ON) when the motion is stopped.

Common Controller

The controller is capable of controlling a linear slide or cylinder, without tuning.

It lets you use high-performance functions through simple operations. Your controller can also be used as a driver for pulse signal controls.

Up to 63 Points of Positioning Data can be set with Ease

Positioning data can be set in one of three methods, as specified below (when the controller is used in Controller Mode)

1. Enter the desired travel amount (mm) directly.

2. Direct teaching

Move the table or the rod to the target position manually and store the achieved position as positioning data.

3. Remote teaching

Move the table or the rod to the target position using a teaching pendant or data editing software and store the achieved position as positioning data.

Choice of Incremental or Absolute Option

The controller can be used as an absolute system by connecting an optional battery set (sold separately).

Choose the absolute option if you want to start operation from the current position rather than the home position, when the power is turned on, or in the event of a power failure.

Controller Key

A removable controller key is used to store the parameters for the various models. This means that the same controller can be used with the EZS II Series, SPV Series, EZC II Series, EZA Series and PWA II Series.

Two Positioning Data Settings

You can set positioning data in the absolute mode or incremental mode, depending on your preferred movement of the equipment.

Absolute Mode (Absolute-position specification):

Each position is set as the absolute position with respect to the reference point. This is suitable when you want to move the work directly from an arbitrary position to a specified position.

Incremental Mode (Relative-position specification):

Each position is relative, being set as an amount of travel from the current position or another target position for the work.

This is done is a regular feed or other operation where the same pattern is used repeatedly

Two Data Execution Modes

Selective Positioning Mode

The set data can be selected at random

Sequential Positioning Mode

Positioning operation is performed sequentially from the desire data.

Push-Motion Function

The rod can be held in a state of being pushed against the load or similar object, as with an air cylinder. the force used to push the load (push force) can be changed.

Area Output Function

A signal is output when the linear slide table or the cylinder rod enters a set area arbitrarily set along the stroke. One set area can be set.

Linked Operation

Up to four operation data can be linked, thereby allowing the actuator to change speeds without stopping.

*Data with the same operation direction can be linked.

Choice of Two Return to Home Methods

Sensorless Return to Home (only for EZS II / EZC II / EZA Series)

Return to home is performed without the use of home sensors. The home position and return to home speed (maximum of 100 mm/s) can be adjusted and the direction of return to home can also be changed.

Return to Home Using Sensors

Return to home is performed using home sensors. With SPV Series, sensors are included with the product.

Output of Current Position and Error Code

The current position, error code and other data can be output to an external device.

Acceleration / Deceleration

Four patterns of acceleration/deceleration settings are possible according to your operating conditions. Acceleration and deceleration can be set separately.

Operation / Data Setting

You can easily perform all tasks from operation to data setting by using our teaching pendant or data editing software.

	Teaching Pendant (Sold separately) EZT1
	Data Editing Software (Sold separately) EZED2

Operation Using External Pulse Input

The EZ Limo can be combined with your existing controller to serve as a driver controlling the linear slide by pulse input.

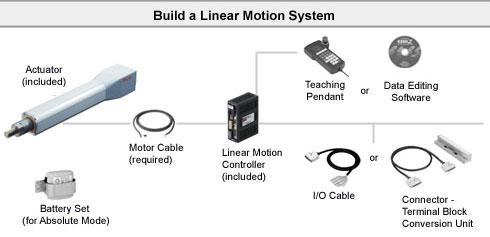

Normal System Configuration - Controller Mode

The linear slide is controlled by selecting positioning data preset in the linear motion controller.

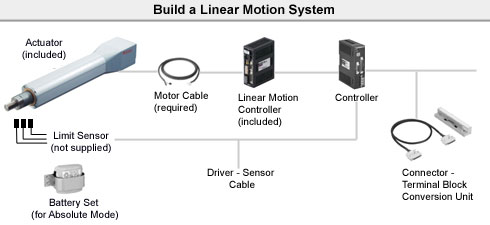

When Combined with the Customer's Controller - Driver Mode

The linear slide is controlled by inputting pulse signals

Speed Filter

Use this filter to suppress disturbances during starting and stopping or to reduce vibration during low-speed operation. With the speed filter function you can control the motor to minimize speed fluctuations even switching the speed rapidly between operation commands.

The set value can be adjusted digitally (over a range of 1 to 100). Increasing the set value makes the movement smoother while decreasing the synchronism with the command.

Stored Program Controller Available

Oriental Motor offers a Stored Program Controller with RS-232C communications. For more information about the Stored Program Controller option please contact Tech Support at 1-800-GO-VEXTA or click here to submit an inquiry.

Product Lineup

Repetitive Positioning Accuracy = ±0.02 mm

Electromechanical Brake Option is available.

*¹ Maximum speed of push-motion operation is 25 mm/s.

*² When an external guide is used.

View Products = View all EZC II Series products.

Controller Mode

Driver Mode

Battery Set (PAEZ-BT2H)

This battery set is needed to use the controller in the absolute mode. Dedicated battery holder is included.

DIN Rail Mounting Plate (PADP01)

This mounting plate is convenient for installing the controller on DIN rails easily.

Controllers (for use in Driver Mode)

Controllers are devices that output pulse signals needed to operate a linear actuator. Controllers let you make various settings to control your motor and also permit connection with a host programmable controller and sensors or PC. Select a controller that best suits your system.

SCX11 - Universal Stored Program Stepping Motor Controller (Single Axis)

SG8030J - Universal Stored Data Stepping Motor Controller (Single Axis)
