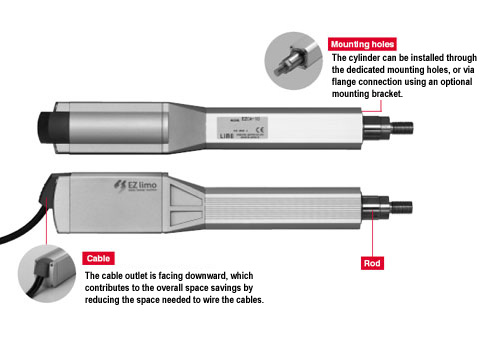

EZC
Series Motorized Cylinders
With
EZ Limo you can have motion in minutes. EZ Limo
has been designed to provide advanced functionality
and sophisticated motion control in an easy-to-use
product. With EZ Limo you save the time and expense
of designing and manufacturing a linear motion system.
|
 |
|
| |
|
|
| Features |
|
Controller |
- Easy-To-Use
With
EZ Limo you can have motion in minutes.
We've done all of the work, saving you the
time and expense of designing and manufacturing
a linear motion system.
- Compact
Design
The motor, ball screw and feedback
system are all housed in a compact, stylish
body.
- Closed-Loop
Control
EZ Limo utilizes an Oriental Motor stepping
motor with a built-in feedback system, when
a misstep is about to occur, the motor performs
closed-loop control, thereby ensuring stable
operation.
- Low
Vibration/Low Noise
The EZ Limo EZHS, EZHC & EZHP
series use a software-based smooth drive
function to suppress vibration and noise
even during low-speed operation, such as
a return-to-home operation.
- Maintenance-Free
for Long-Term Performance
The drive mechanism uses THK's
ball screw, while the guide mechanism adopts
THK's LM Guides®. The ball screw employs
the QZ™ lubrication system, while
the LM Guide® uses the Ball Retainer®
to retain coupled rolling elements. These
mechanisms give the system a considerable
duration of maintenance-free performance.
|
 |
|
| |
|
|
|
| Product
Specifications |
| Model |
Speed
(mm/s) |
Max.
Thrust
(N) |
Repetitive
Positioning
Accuracy (mm) |
Resolution
(mm) |
Stroke
(mm) |
| EZC4 |
300 |
45 |
±0.02 |
0.015 |
50,100,200,300 |
| EZC6 |
300 |
100 |
±0.02 |
0.015 |
50,100,200,300 |
| EZHC4 |
600 |
65 |
±0.02 |
0.01 |
50,100,200,300 |
| EZHC6 |
600 |
200 |
±0.02 |
0.01 |
50,100,200,300 |
| EZHP4 |
300 |
140 |
±0.02 |
0.01 |
50,100,200,300 |
| EZHP6 |
300 |
400 |
±0.02 |
0.01 |
50,100,200,300 |
|
| Motorized
Cylinder - Speed - Thrust Force Characteristics |
| |
|
|
 |
|
 |
|
| |
|
|
Motorized
Cylinder Construction
|
| |
|
|
|
