Servo Motors, Drivers and Controllers

Servo Motors (Motor Only)

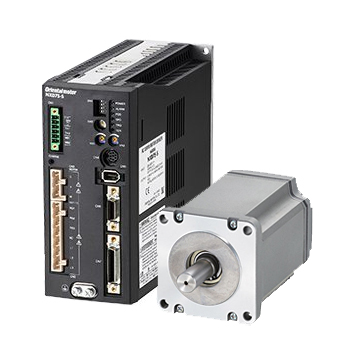

Servo Motors

The servo motor is specialized for high-response, high-precision positioning. As a motor capable of accurate rotation angle and speed control, it can be used for a variety of equipment.

  • Tuning Free
  • Compact and High Power
  • Wide Variable Speed Range
  • Standard or Planetary Geared Type
  • Electromagnetic Brake Types

Servo Motor Drivers

Servo Motor Drivers

Servo motor drivers convert pulse signals from the controller into motor motion to achieve precise positioning.

  • Tuning Free and Short Range Servo Motor Drivers
  • AC Input
  • Tuning Free Servo Motor Drivers utilize pulse and direction
  • Short Range Servo Motor Drivers utilize pulse and direction or network communications

Controllers / Network Gateways

Controllers / Network Gateways

Controllers and Network Gateways for use with motion control systems.

  • Controllers for use with Pulse Input Drivers
  • Network Converters/Gateways (RS-485 Communication)
    • EtherCat
    • CC-Link
    • MECHATROLINK

EtherCatCC-LinkMECHATROLINK





Servo Motors

Oriental Motor offers two types of servo solutions. Tuning Free Servos products or Short Range Servo products. Both types of solutions provide closed loop control along with many other advantages.

Our Tuning Free Servos are traditional servo solutions where the encoder provides feedback to the driver and all motion is controlled through a Position Counter. Use of the limited duty region is available for short periods of time where more torque is required.

Our Short Range Servos are closed loop as well and utilize a different motor technology where as they provide maximum torque throughout their entire speed torque range without the concern of operating in the limited duty region. See the speed torque comparison below for a clear comparison. Also, our Short Range Servo driver are Network compatible.

Type

Output Power

System

Gear

Brake

Max. Speed

Tuning Free Servo

50 W ~ 750 W

Pulse Input

Optional

Optional

5,500 r/min

Short Range Servo

30 W ~ 400 W

Stored Data (Network)
or Pulse Input

Optional

Optional

4,000 r/min




Videos

Servo Motor & Stepper Motor Demo

Closed Loop Demo

AZ Series - Easy Home Setting

AZ Series - Restarting Demo
