BLS Series Brushless DC Motors (BLDC Motors) - DC Input
BLS Series Brushless DC Motors (BLDC Motors) - DC Input
The BLS Series combines an efficient, compact, and lightweight brushless motor with a slim, universal driver. This series meets simple variable speed requirements where space is limited. Recommended for users of standard AC motors driven by a variable frequency drive (VFD) or inverter, the BLS Series provides an easy upgrade path with improved efficiency and performance. Compatible with various gearheads, the BLS Series motor easily replaces AC motors that use the same gearhead, ensuring a smooth transition for your application.
- Simple, compact, and cost-effective
- IP65 or IP40
- Ideal for applications like conveyors and agitators
- Reduce electricity costs
- Standard or long-life type gearheads available: parallel shaft, hollow shaft flat gear or round shaft (no gear)
BLS Series Product Highlights
Smaller and Lighter Motor
Reduce Electricity Charges
Brushless motors are highly efficient, saving you energy. Electricity costs can be reduced by 20% compared to the use of an AC motor and VFD/inverter.
Reducing Speed Fluctuation
The motor is equipped with a small sensor that performs feedback control. This reduces the fluctuation in motor speed when the load changes.
Slimmer Driver
One Driver Can Handle All Motor Outputs
All motors can be operated by a single driver model. Because parts can be standardized, inventory and maintenance can be reduced.
The Free Support Software MEXE02 Allows for More Advanced Setting and Monitoring
Using support software MEXE02 makes data setting and monitoring easier.
The Same Gearheads for AC Motors Can be Used*. Easily Replace the Motor without Having to Modify the System
For the same output power, the motor’s frame size and pinion specifications are identical to an AC motor*. The same gearheads (GN gearhead/GE gearhead) as an AC motor can be used*.
*For a standard (AC motor compatible) type.
Gearhead Selection Based on Intended Use
Type |
Standard (AC motor Compatible Type) |
High Strength, Long Life Type |
|
Appearance |
 |
 |
 |

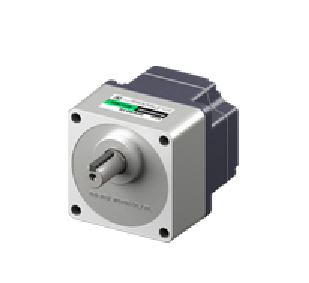

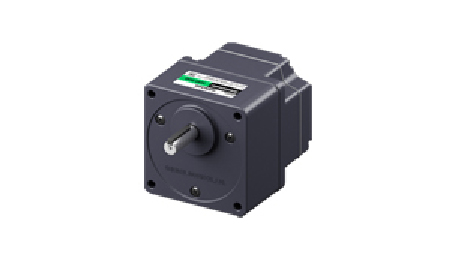

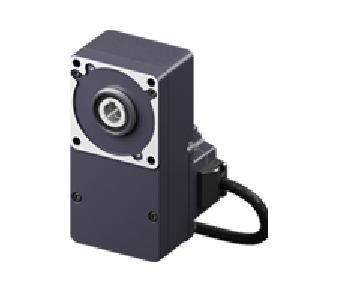

| Parallel Shaft Gearhead | Parallel Shaft Gearhead | Hollow Shaft Flat Gearhead | |
Overview |
The same gearhead as Oriental Motor’s AC motor Example: 4GN□K |
Gearheads for brushless motors High permissible torque, long service life Example: GFV4G□, GFS4G□FR |
|
Assembled Motor Output Power |
25 W, 40 W, 90 W |
30 W, 60 W, 120 W |
|
Max. Permissible Torque |
20 N·m |
30 N·m (Parallel shaft gearhead) 60 N·m (Hallow shaft flat gearhead |
|
Rated Life of a Gearhead |
5000 hours |
10000 hours |
|
