Linear Actuators - Motorized Linear Slides, Motorized Linear Cylinders, Compact Linear Actuators

Linear Actuators

Linear Actuators - Motorized Linear Slides, Motorized Linear Cylinders, Rack and Pinion Actuators

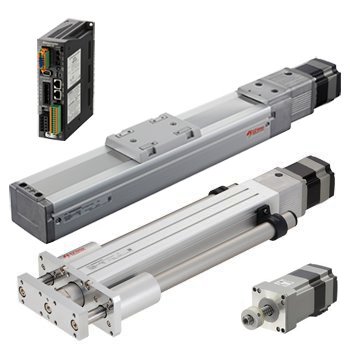

Motors offer excellent controllability and are therefore used as the drive sources of various automated equipment. In many cases a stepper motor is combined with various mechanical components such as a ball screw, belt and pulley, and rack and pinion to convert the motor rotation to a different type of motion needed to drive the equipment such as a linear actuator. Oriental Motor has various linear actuators consisting of a stepper motor assembled with the necessary mechanical components to meet the various needs of automated equipment.

Learn more about our AlphaStep family of products

Equipped with a motor offering excellent controllability, our linear actuators offer the following advantages over hydraulic and pneumatic actuators:

  • The actuator is very stable when operated, even at low speeds. It also offers smooth acceleration and deceleration operation.
  • Motions can be programmed with multiple stopping points.
  • With a linear actuator using a stepper motor, adjustment of position and speed can be performed easily using data. Setup change is also simple, as you need to do is change the data.


Linear Slides / Linear Actuators

AlphaStep Linear Slides

A broad lineup of AlphaStep motorized linear slides designed for greater ease and higher performance in positioning applications. Featuring a stepper motor combined with linear slide.

  • Quick positioning
  • Large transportable mass
  • Straight or Reversed Motor type
  • X-Axis or Y-Axis Table

Linear Cylinders / Linear Actuators

AlphaStep Linear Cylinders

AlphaStep motorized cylinders for positioning even heavy loads, ideal for applications where the load is pushed or pulled. Featuring a stepper motor with a linear cylinder assembly.

  • Large transportable mass
  • Straight or Reversed Motor type
  • Guide or No Guide types

Compact Motorized Cylinders

Compact Linear Actuators

A compact actuator designed for high positioning accuracy and high thrust force. Featuring a stepper motor combined with linear motion assembly.

  • Standard or Guide type
  • Ground or Rolled ball screw
  • Significantly fewer parts
  • Reduced assembly time

Rack and Pinion Linear Actuators

Rack and Pinion System L Series - AZ Series Equipped

The Rack and Pinion System L Series- AZ Series Equipped is a linear actuator in which a rack and pinion mechanism with a motor have been combined. The motor is equipped with the AZ Series that utilizes a battery-free absolute sensor, which allows for high positioning accuracy and high load transportation.

  • Horizontal or Vertical movement
  • High-Speed or High-Transportable-Mass Type
  • Electromagnetic Brake options

THK Linear Slides / Linear Actuators

THK Linear Slides

The THK linear actuators consist of a highly rigid outer rail with a U-shaped cross section, LM Guide units on both sides and a Ball Screw unit in the center.

  • High Rigidity, Compact and Space Saving
  • Normal, High Accuracy and Precision types
  • Motor, Coupling, Flange kits (sold separately)

Controllers / Network Gateways

Controllers / Network Gateways

Controllers and Network Gateways for use with motion control systems.

  • Controllers for use with Pulse Input Drivers
  • Network Converters/Gateways (RS-485 Communication)
    • EtherCat
    • CC-Link



Advantages of Using Linear Actuators, Linear Slides and Linear Cylinders

When automated equipment is designed, various factors must be taken into consideration including the production line layout, installation environment, ease of maintenance, configuration of electrical wiring and control system, and so on. This means many man-hours are needed to select the motor and other mechanical components and create a parts list, drawings, operating manuals and the like. Use of linear and rotary actuators can reduce this time and offers additional benefits.


Higher Design Efficiency

The primary feature of automated equipment is its ability to implement a series of basic operations such as "transfer", "push" and "rotate." In other words, you can design automated equipment by selecting and combining linear and rotary actuators capable of performing these basic operations. Since all you need is to select an actuator, you can save the time and effort.

Shorter Production Time and Higher Quality

When building equipment in-house by assembling a motor and mechanical components (see illustration), the quality of assembly affects the traveling resistance and position accuracy, therefore ultimately adjustments will be needed to achieve the expected operating performance. On the other hand, our linear and rotary actuators are complete products guaranteed to provide the specified operating performance, so use of linear and rotary actuators reduces adjustment work and ensures uniform quality.

Oriental Motor offers various linear and rotary actuators to help you improve your design productivity.

Construction of Linear Actuator

Motorized Linear Slides

The motor is integrated with a linear motion mechanism which makes this actuator ideal for transferring loads.


Motorized Linear Cylinders

The motor is integrated with a linear motion mechanism, which makes this actuator ideal for pushing and pulling loads.


Compact Motorized Cylinder

A stepper motor is integrated with a ball screw. An ideal actuator for pushing and pulling small loads or fine-tuning applications.

Fine Tuning

Rack and Pinion Linear Actuators

A rack and pinion mechanism combined with a motor to provide horizontal or vertical linear motion.

Linear movement

αSTEP Hybrid Control System

AlphaStep products are stepper motor based hybrid motors with a unique hybrid control system combining the benefits of "open loop control" and "closed loop control".

The position of the motor is always monitored, and then the driver automatically switches between 2 types of control depending on the situation.

Normally Operates in Open Loop Control for the Same Ease of Use as a Stepper Motor

Open Loop Control

High Response

By utilizing the high responsiveness of the stepper motor, moving a short distance for a short time is possible. The motors can execute commands without lag.

High Response

Holding the Stop Position without Hunting

During positioning, the motor stops with its own holding force without hunting. Because of this, it is ideal for applications where the low rigidity of the mechanism requires absence of vibration upon stopping.


Because it is normally operated with open loop control, positioning is still possible without gain adjustment even when the load fluctuates due to the use of a belt mechanism, cam or chain drive, etc.

Switches to Closed Loop Control during Overload for More Reliable Operation like a Servo Motor

Closed Loop Control

Continues Operation Even with Sudden Load Fluctuation and Sudden Acceleration

It operates synchronously with commands using open loop control during normal conditions. In an overload condition, it switches immediately to closed loop control to correct the position.

Closed Loop Control

Alarm Signal Output in Case of Abnormality

If an overload is applied continuously, an alarm signal is output. When the positioning is complete, and END signal is output. This ensures the same level of reliability as a servo motor.
