OVR Series Cartesian Robots

OVR Series Cartesian Robots

The OVR Series Cartesian 3-axis small robot features a simple mechanism that can be easily controlled and constructed cost-effectively. Cartesian Robots, also known as Gantry or Linear Robots, utilized three linear, sliding joints to move through a 3-dimensional space. These robots utilize rigid joints that are each perpendicular to each other provide high reliability and precision for X-Y-Z movement. Control with the MRC Series controller and AZ Series motor drivers.

Delivered with three linear slides assembled, reducing equipment startup time and labor
Moving range 300 mm × 300 mm × 100 mm (X-Y-Z)
Transportable mass 2.5 kg

Product Lineup
Product Features
Controllers
End Effector
Accessories
System
Part Number Code

Product Lineup

Cartesian Robots	Number of Axes	Moving Range	Transportation Mass	Power Input
	3-Axis Cartesian Robot	300 x 300 x 100 mm	2.5 kg	24 VDC

Search by Specification

SCARA Robots

3-axis		Cartesian Robots Delivered Assembled
OVR3AR030030Z10K-C		Combined with electric linear slides on three axes Contributes to reduced equipment startup time and labor saving Moving range 300 mm × 300 mm × 100 mm (X-Y-Z), transportable mass 2.5 kg

Built-in Battery-Free Absolute Encoder

The αSTEP AZ Series (DC input) is used for all axes. No external sensors are required, simplifying the wiring. No battery is needed, so maintenance can be reduced.

Easy Maintenance

Some motors can be replaced by the customer. This cuts down on the burden of maintenance (both cost and time) after deployment.

*Oriental Motor also replaces motors during maintenance. Please contact your nearest Oriental Motor sales office.

Simple Control with a Robot Controller

Knowledge of "Networks", "Ladder Programs", and "Kinematics operations" is needed to run robots.

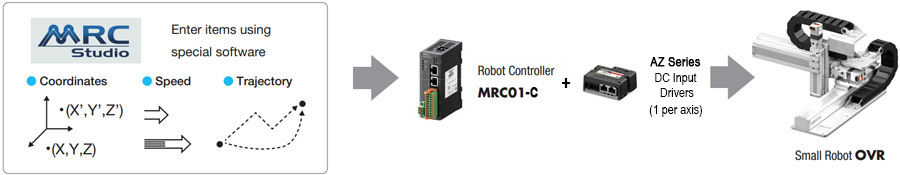

OVR utilizes a robot controller, making it easy to start up and control the robot, even without robot control experience. Simple Control with a Robot Controller

Product Line

	MRC01 and AZ Series mini Driver (up to 7) in a single package Equivalent to A4 size (300 mm × 180 mm × 85 mm) for space saving Easy wiring reduces the risk of mis-wiring Fewer parts to be purchased
Integrated Robot Controller & Drivers
MRCU Series

Robot Controller	Easily introduce custom-built robots to existing systems Direct control via EtherNet/IP™ Easy setup even for beginners (no ladder logic) Experience the "MRC Studio" programming software (trial version) before purchase Use with the OVR Series Cartesian Robot
MRC01-C

Programming Software MRC Studio

Dedicated software that provides support from start-up to maintenance
Create operation programs from a PC to set and edit various parameters
Teaching and various condition monitoring functions available
*The MRC Studio software and EDS files can be downloaded from the Oriental Motor website.
*MRC Studio Simulator (free) is also available for robot operation checks before purchase.

MRC Reality (AR App for Mobile)

We have an iPhone/iPad app that allows a robot to be seen in real space to simulate its operation. This simulator allows you to make the small robot OVR appear in the actual space and check its size and range of motion. Please use it to check the size and mechanism movement that are difficult to grasp from catalog information alone. Please contact our technical support for the details.

Use your smartphone or tablet
Download here for free

MRC Reality AR App for Mobile App Store QR Code

End Effector

The EH Series of electric grippers equipped with the αSTEP AZ Series can be controlled as an end effector by the robot controller. EH Series End Effector Product Line

Applications

The EH Series of electric grippers equipped with the αSTEP AZ Series can be controlled as an end effector by the robot controller. EH Series End Effector Applications

Fine Gripping Force Control

Fine current control allows the gripping force to be finely changed and adjusted.
Grips everything from delicate parts to slippery loads appropriately, gently or firmly as needed.
