Linear Actuator Attachment for Stepper Motors

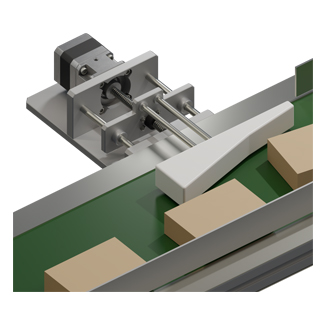

The Mounting Adapter for Linear Actuators is a linear motion mechanism with a lead screw and resin nut. It saves space and reduces design time compared to a custom-built mechanism. Use these with 28 mm and 42 mm frame size 2-Phase and 5-Phase PKP Series stepper motors or AZ Series Hybrid Step-Servo motors with multi-turn absolute position control and sensorless homing.

• Linear motion mechanism with a leadscrew and a wear-resistant resin nut
• Easy installation without the need of coupling to an Oriental Motor stepper motor
• For the 30 mm frame size, thrust and self locking force are both at max. 40 N

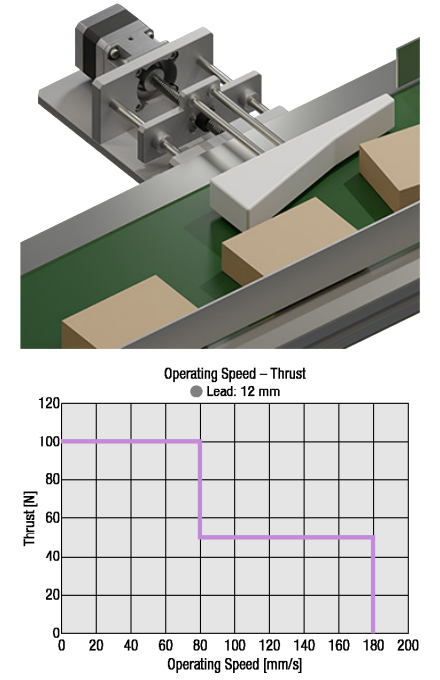

• For the 42 mm frame size, thrust and self locking force are both at max. 100 N

The Mounting Adapter for Linear Actuators is a linear motion mechanism with a rolled ball screw and iron nut. It saves space and reduces design time compared to a custom-built mechanism. Use these with 28 mm and 42 mm frame size AZ Series Hybrid Step-Servo motors with multi-turn absolute position control and sensorless homing.

• Linear motion mechanism with a rolled ball screw and an iron nut
• Easy installation without the need of coupling to an Oriental Motor stepper motor
• Repetitive positioning accuracy of ±0.01 mm
• For the 30 mm frame size, thrust force is at max. 50 N
• For the 42 mm frame size, thrust force is at max. 160 N

This is a linear motion actuator that incorporates a ball screw into a stepper motor. Able to reduce the size and weight of the overall machine. Available in Table Type, Rod Type and Rod Type with Guide.

The number of man-hours required for assembly and adjusting the installation accuracy can be reduced, contributing to higher productivity.

• PKP Series 2-Phase Stepper Motor
• Table Type, Rod Type and Rod Type with Guide
• 24/48 VDC Input
• Connection Cables and DC Input Driver required (sold separately)*
