EtherCAT Multi-Axis Controllers / Drivers
αSTEP Hybrid Step-Servo
AZ Series EtherCAT Multi-Axis Controllers / Drivers (DC Input)
A multi-axis controller that supports EtherCAT communication.Compatible with the CiA402 drive profile. It can be connected to the AZ Series DC input motors and electric actuators.
2-axis, 3-axis and 4-axis driver connections are available.
- 24/48VDC
- Works with AZ Series DC Input stepper motors and actuators
- Multi-Axis Motor Connection Cables required
*Call for support with SSCNETIII/H or Mechatrolink, 1-800-GO-VEXTA (468-3982)
Space-Saving and Low-Cost Multi-Axis Controller / Driver (Max. 4 Axes)
AZ Series Multi-Axis Drivers
A multi-axis driver that supports EtherCAT communication. Compatible with the CiA402 drive profile. It can be connected to the AZ Series DC input motors and electric actuators. 2-axes, 3-axes and 4-axes driver connections are available.
ESI File
An ESI file is provided so that EtherCAT-compatible products can be used more easily. For questions about connections to Omron PLCs, please contact OMRON Corporation. An EtherCAT connection guide is available.
4-Axis Driver Slim Type
Multi-Axis Drivers (2-Axis Type, 4-Axis Type) are compact and save space by aligning Single-Axis Drivers
Multi-Axis Drivers can reduce installation space by aligning network-compatible Single-Axis Drivers.

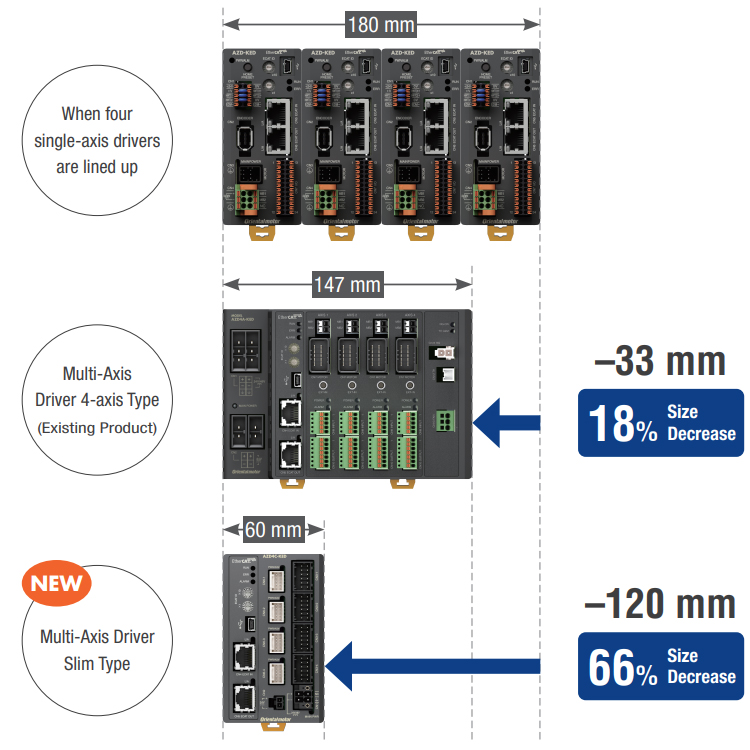

Compact and Space Saving
Significant space can be saved compared to existing single-axis and multi-axis drivers.
Slim Type Difference from Original Multi-Axis Driver
The new slim type is specialized for reducing equipment size and omits some functions.
| Item | Multi-Axis Driver Slim Type
|
 |
Multi-Axis Driver |
 |
|
|---|---|---|---|---|---|
| Function | Regerneration Unit Connection |
- |
Connect as necessary | ||
| Fan Connection | - |
Connect as necessary | |||
| EXT-IN Button | - |
◦ | |||
| Power Connection | Power Link Connection | - |
◦ | ||
| Installation Method | Affixing with Screws | - |
◦ | ||
| DIN Rail | ◦ | ◦ | |||
| Output | Number of Output Points |
1 point |
3 points |
||
| Alarm | Main Power Input Current Error Alarm | ◦ | - |
||
| Control Power Overvoltage Alarm | ◦ | - |
|||
Combination Products
AZ Series Multi-Axis Slim Type Driver can be used in combination with the following motors and linear & rotary actuators.When using a motor with a frame size of 42 mm or less for multiple-axes, consider using the slim type.
Motors
Multi-Axis Driver Slim Type
|
 |
Multi-Axis Driver |
 |
|
|---|---|---|---|---|
Combined Motor Product Name |
AZM14, AZM15, AZM24, AZM26, AZM46* | AZM14, AZM15, AZM24, AZM26, AZM46, AZM48, AZM66, AZM69 | ||
*Cannot be combined with high-speed types
AZ Series Equipped Linear & Rotary Actuators
- Electric Linear Slides EZS Series DC Input
- ·Electric Cylinders EAC Series DC Input
- ·Compact Electric Cylinders DR Series/DRS2 Series
- ·Hollow Rotary Actuators DGII Series DC Input
Extended Functions with MEXE02 Support Software
Monitoring Functions
You can monitor the status of all axes at once.
Waveform Monitoring
The operating status of the motor (such as command speed and feedback speed), can be checked by an oscilloscope-like image. This can be used for equipment start-up and adjustment.
Status Monitor
In addition to monitoring operating speed, motor driver temperature and load factor, you can also monitor total rotation amount from the start of use.
For each item, you can set up to output signals arbitrarily, so it is effective for efficient maintenance.
Alarm Monitoring
When an abnormality occurs, the details of the abnormality and the solution can be checked. Because the solution can be checked it is possible to respond to abnormalities quickly.
Multi-Monitoring Support
Multiple setting screens such as data setting, test driving, monitoring etc. can be opened simultaneously in separate screens and used. It is easy to start up and adjust the equipment.
Test Function
It is a function that allows you to operate the motor independently or check connection with the host system.
By utilizing it at the time of device start-up, it will shorten the time.
Remote Operation
Data setting software can be used to perform the home setting and also drive the motor. This can be used for teaching or test drive purposes.
I/O Test
The status of the I/O wired to the driver can be checked on a computer. This can be used for post-wiring I/O checks or I/O checks during operation.
Parameter Settings
You can set parameters directly without going through the network. Also, you can set each axis without replacing the cable.
AZ Series Products
Eliminate Extra Sensors with a Battery-Free Absolute System
The αSTEP AZ Series Mechanical Absolute Encoder is available as a leading closed loop, battery free absolute motion solution sold as a Stepper Motor + Driver or Linear Actuator + Driver allowing for absolute, battery free, advanced performance across a wide range of applications.
Product Lineup
Item |
Network |
Power Supply |
Control Power Supply |
|
EtherCAT |
24/48 VDC |
24 VDC |
|
EtherCAT |
24/48 VDC |
24 VDC |
|
EtherCAT |
24/48 VDC |
24 VDC |
|
EtherCAT |
24/48 VDC |
24 VDC |
AZ Series Closed Loop Stepper Motors (DC Input)
The AZ Series offers high efficiency, low vibration and incorporates our newly developed Mechanical Absolute Encoder for absolute-type positioning without battery back-up or external sensors to buy. Closed loop performance without hunting or gain tuning. Available with a built-in controller or pulse input driver which substantially reduces heat generation from the motor through the use of high-efficiency technology. Requires AZ Series Driver.
- Battery-Free, Mechanical Absolute Encoder
- Closed Loop Performance, No Hunting or Gain Tuning
- DC Input Types
- Wide Range of Gear Types for Inertia Matching & Higher Torque
- Electromagnetic Brake Type Available
Control Options - Support Software
MEXE02 Support Software.
*A standard USB to mini B cable is used to connect all drive options to the computer (sold by a third party).
Regeneration Unit
Use this unit if your application involves vertical movement or a large inertia load.
*Cannot be used with 2-axis drivers.
Type |
Product |
Regeneration Unit |
Multi-Axis Motor Connection Cables (required)
These motor connection cables are required when connecting to the Multi-Axis Controller / Driver.
Power Supply Cables
These cables connect the Power Supply to the Multi-Axis Controller / Driver.
Type |
Product |
Main Power |
|
Control Power |
Slim Type Driver Connection & Extension Cables (required)
These motor connection cables are required when connecting to the Multi-Axis Driver Slim Type.
Slim Type Driver Power Supply Cables
These cables connect the Power Supply to the Slim Type Multi-Axis Driver.
Length |
Product |
0.3 m |
|
1 m |

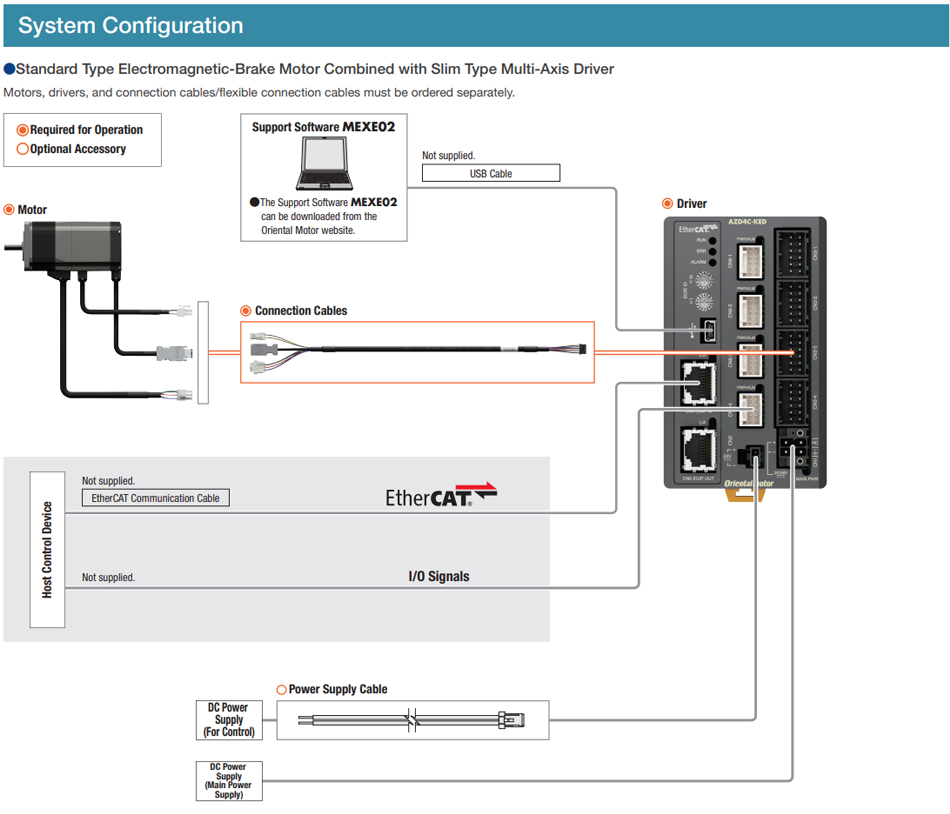

System Configuration
Part Number Code
