Case Study - Industrial Robot and Conveyor Automation Demo
For this case study, our application engineering group combined 2 OVR Series articulated robots and MRC robot controllers with our BLH Series brushless DC motors to run two conveyors to demonstrate a working example of the warehouse work roles; Picking, Packing, Shipping, Receiving, Unpacking and Stocking.
- Intro
- Vision System
- 5-Axis Robot
- Conveyor System
- Pallet Packing
- Electric Gripper
- 4-Axis Robot
- Electric Pump
- MRC Software
- Support
Electric Pump End Effector
OVR Series 4-Axis Articulated Robot
The electrical pump turns ON to suction and turn OFF to release the objects.
This can be controlled using PRG-DOUT signal output from MRC robot controller.
The MRC robot controller can control other peripheral devices using Direct IOs or Remote IOs.

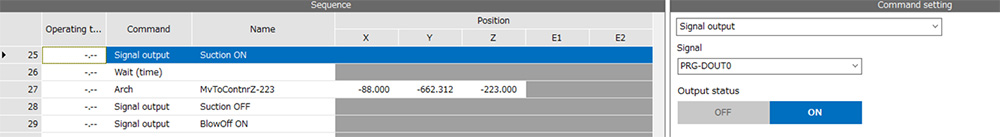

This demonstration uses Direct Output, PRG-DOUT commands

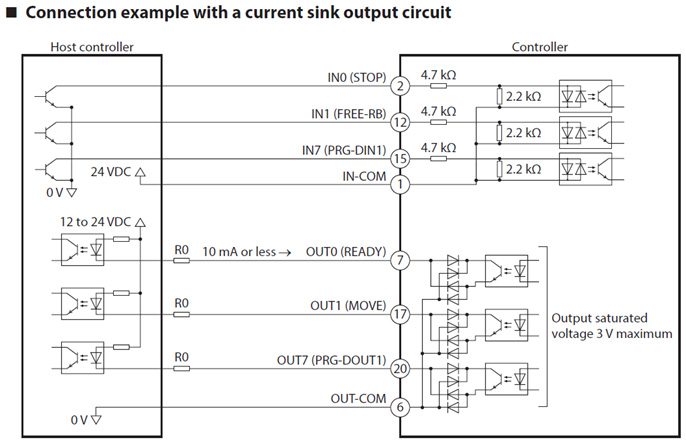

For Direct IO, MRC robot controller can interface with NPN or PNP inputs and output.

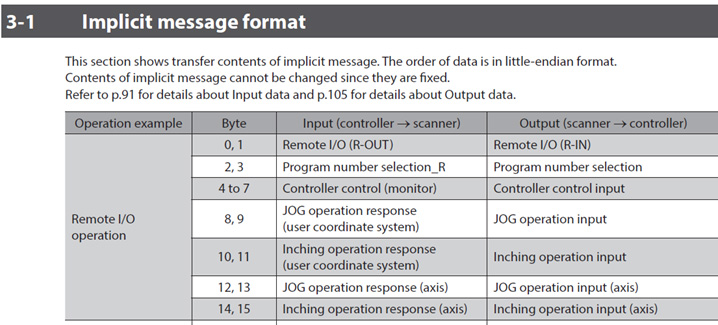

For Remote IO, MRC robot controller can communicate through Ethernet IP.
