Case Study of Security/Surveillance Camera Lens Position Confirmation
Issue: Need to Know the Direction the Camera is Facing
Challenge
- Cannot verify if the camera is at the specified position or not when the camera is moved
- When the motor is not synchronized, it cannot be confirmed
Solution: PKP Series with Encoder Confirms the Position of the Camera With Feedback From the Encoder

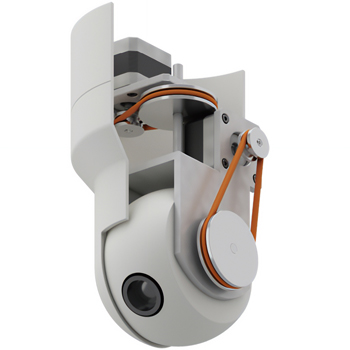

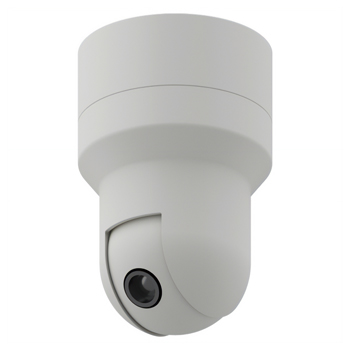

- Surveillance camera that swivels along the θ-axis
- Stepper motor is used for rotation of the part for pan mechanism
Specfic Application Example
Motor Position Detection is Possible

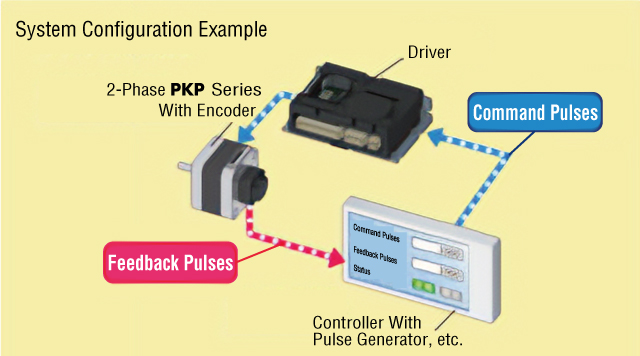

It is possible to monitor the present position and detect position error by looking at the difference between the detected value from the encoder and the command pulse.
Compact Encoder Contributes to Space Saving for Surveillance Camera

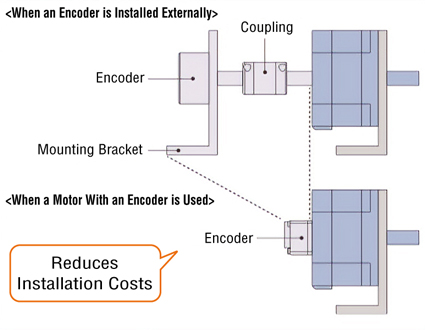

Since the encoder is pre-installed, no parts or space are required for assembly. In addition, the compact encoder does not take up space in the equipment.

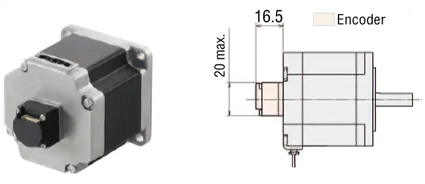

When the frame size is 56.4 mm
Adopts a Noise-Resistant Line Driver Output
The line driver output circuit format provides high reliability, excellent noise-resistance due to differential output, and a longer wiring distance compared to voltage output. As a result, the wiring of surveillance cameras can be carried out freely. Cables (2-phase/5-phase) are also available for convenient wiring.
 |
 |
