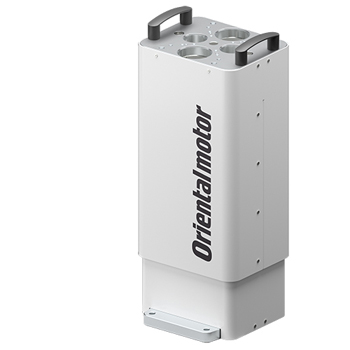

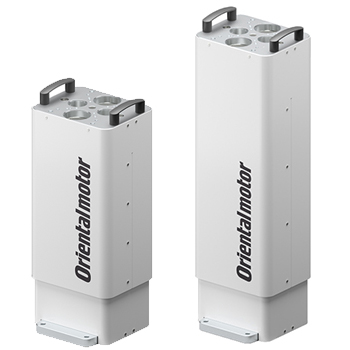

EL Series Electric Lifting Columns
EL Series Electric Lifting Columns
The EL Series Electric Lifting Columns can be combined with a robot to expand the vertical operating range. Its high-rigidity design supports high moment loads while preventing vibrations and TCP wobble. 50, 100, 200, and 300 mm stroke lengths are available. This product helps reduce equipment design, assembly, and start-up time.
- Lifting columns to expand the robot’s operating range
- Reduced time for equipment design, assembly, and start-up
- High rigidity and high accuracy
- Drive Motor: AZ Series with battery-free built-in absolute encoder (DC Input)
- For the specifications and characteristics of 48 VDC input, please contact technical support.

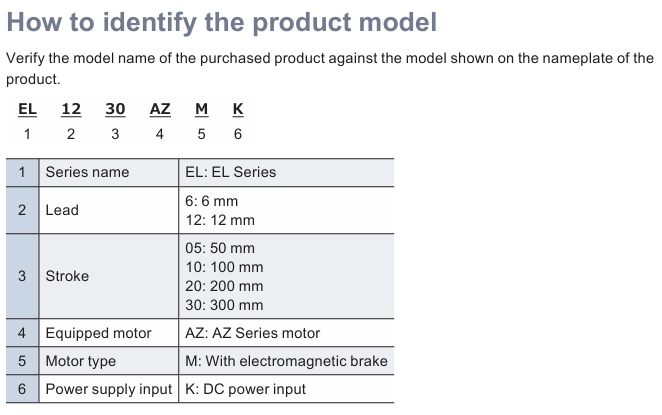

Product Lineup
Electric Lifting Columns |
Lead |
Stroke | Transportable Mass*1 |
Thrust |
Push Force |
Power Input |
Electromagnetic Brake |
|---|---|---|---|---|---|---|---|
|
6 mm |
50 ~ 300 mm |
30 kg |
400 N |
500 N |
24/48 VDC |
Equipped |
12 mm |
15 kg |
200 N |
400 N |
*1 The load mass that can be driven is the transportable mass minus the moving parts mass
[Note]
- Push motion operating speed should be 25 mm/s max.
- The maximum speed may be lower depending on the ambient temperature and the length of the motor cable.
Easy to Combine With Small Robots OVR to Increase Vertical Reach
An EL Series electric lifting column is a product that can be combined with a robot to expand the vertical operation range. High rigidity and high accuracy stroke 50 to 300 mm The lineup includes high rigidity and high precision models with strokes ranging from 50~300 mm. Contributes to reducing equipment design, assembly, and start-up time.
Reduced Time for Equipment Design, Assembly, and Start-Up
Robots and loads can be attached directly to the product body. Eliminates the need for the customer to design an external guide and arrange parts, thus contributing to a reduction in equipment startup time.
EL Series Electric Lifting Columns

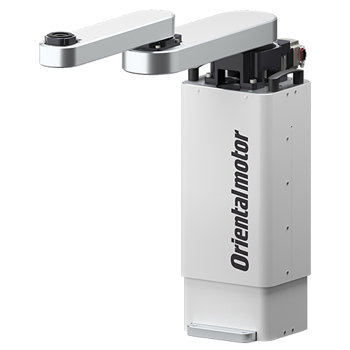

Small Robots OVR 3-axis SCARA Robot + EL Series Electric Lifting Columns + Electric Gripper EH Series
Compatible Small Robots OVR
SCARA Robots |
Articulated Robots |
||
3-Axis |
4-Axis |
5-Axis |
6-Axis |
|
|
|
|

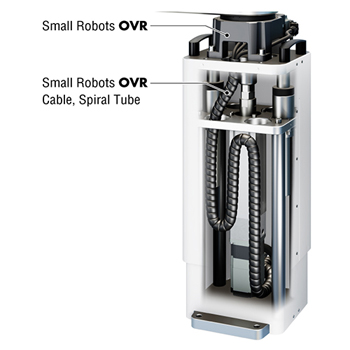

Internal Cable Storage

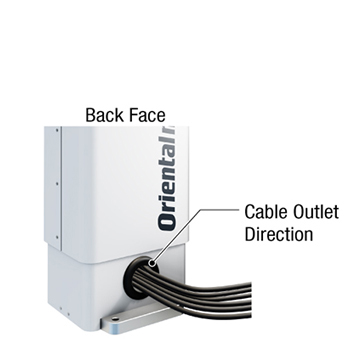

Using the hole in the upper part of the product body, robot cables can also be grouped together and passed through the interior of the electric lifting column.

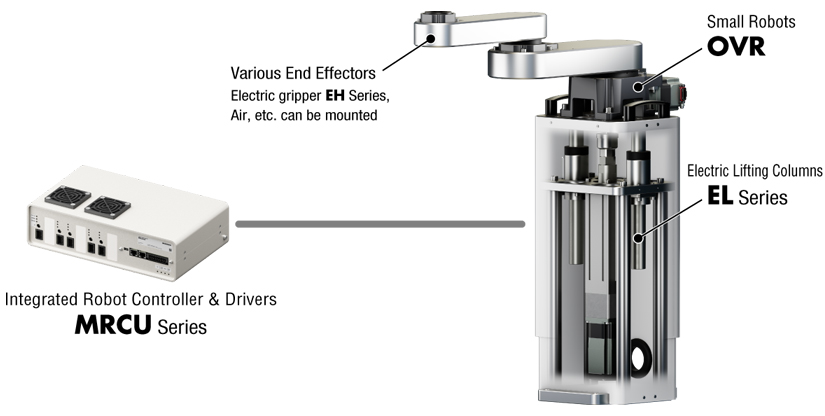

A Single Robot Controller Controls a Robot and up to Two Axes of End-effectors
The MRC01 robot controller and MRCU Series integrated robot controller & drivers can control up to two accessories equipped with the AZ Series in addition to the robot. For example, when using a combination of one Small Robots OVR, one EH Series electric gripper, and one EL Series electric lifting column can be controlled with a single robot controller. Additionally, SCARA robots can be controlled as robots including lift axes, so a single robot controller can control one SCARA robot + one electric lifting column + up to two accessories equipped with the AZ Series.

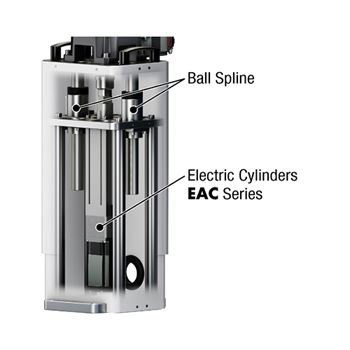

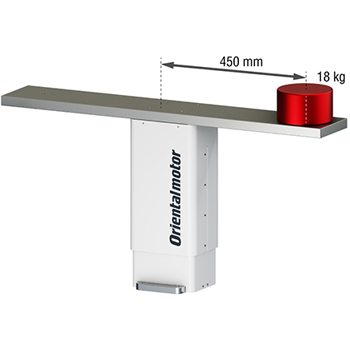

High Rigidity, High Accuracy, and High Permissible Moment Are Made Possible With Ball Splines
High permissible moment load is made possible with highly rigid ball splines. The permissible moment of 80 N·m makes it ideal for use in combination with SCARA robots.

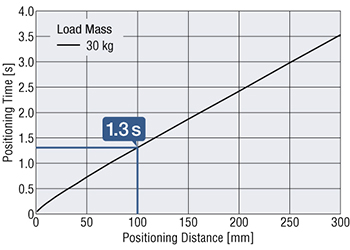

Capable of Driving Heavy Loads at High Speeds
 |
Example Operation
Product Used
|
 |
|---|
The shortest positioning time can be calculated. Please contact our robot support team.

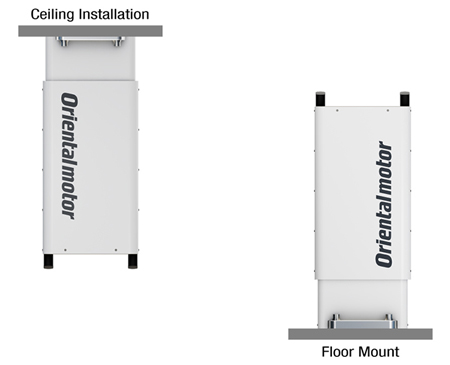

Choose Your Mounting Direction
Floor or ceiling-mounted are available, expanding the range of equipment design.
Advantages of Equipped With AZ Series
It is equipped with a small battery-free mechanical absolute encoder (ABZO sensor). This can help improve productivity and reduce costs.
- Mechanical-Type Sensor
Keeps position information even when not powered - Multi-Rotation Absolute Encoder
Absolute position detection is possible with ±900 revolutions (1800 revolutions) of the motor shaft from the reference home position
No External Sensors Required
As it is an absolute system, home sensors or limit sensors are not required.
Advantages
- Improved high-speed return-to-home + return-to-home accuracy
- Reduced cost
- Simple wiring
- Not affected by external sensor malfunctions
Battery-Free
Mechanical-type sensors do not require batteries. Positioning information is managed mechanically by the ABZO Sensor.
Advantages
- No need to replace batteries
- Unlimited driver installation possibilities
- Safe for overseas shipping
Simplifying the Main Program via Sequence Function
• Positioning operation data setting value (Max. 256)
• General-purpose I/O signal counts (input 10, output 6)
• Communication I/O signal counts (input 16, output 16)
Simple Control with a Robot Controller
Knowledge of "Networks", "Ladder Programs", and "Kinematics operations" is needed to run robots.
OVR Series small industrial robots utilize a simple robot controller, making it easy to start up and control the robot, even without robot control experience.
Product Line
|
|
Integrated Robot Controller & Drivers |
|
MRCU Series |
|
Robot Controller |
|
MRC01 |
|
Easy Setup with MRC Studio Programming Software
 |
|
|---|
MRC Reality (AR App for Mobile)
We have an iPhone/iPad app that allows a robot to be seen in real space to simulate its operation. This simulator allows you to make the small robot OVR appear in the actual space and check its size and range of motion. Please use it to check the size and mechanism movement that are difficult to grasp from catalog information alone. Please contact our technical support for the details.
Use your smartphone or tablet
Download here for free
SCARA robot with a lifting column

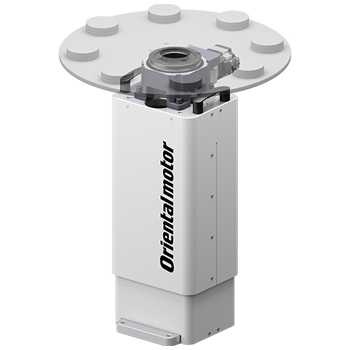

Index table with a lifting column

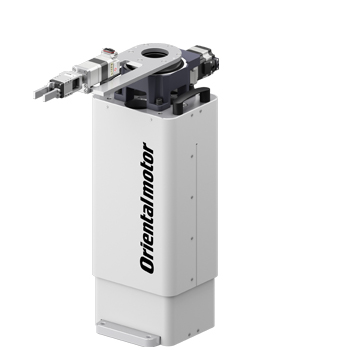

Custom-built robot with a lifting column
Let's Make Automation Work for You!
OVR Series Robot Support Lab
At the Robot Lab, you can experience hands-on testing using your own workpieces and go through the entire planning process from robot controller setup to programming. You can also see demonstrations of articulated and SCARA robots. Online consultations are available via PC or smartphone.
Chicago Lab Contact Information |
What You Can Do at Robot Lab
Proof of Concept
We can conduct transport tests using your workpiece and end effector to verify if operation is possible. We can perform detailed verification, including checking if the desired operating speed and trajectory are achieved, providing consultations on gripper design, and robot sizing. In addition, we can help address any other concerns you may have about introducing robots into your operations.
Demonstration (On-site/Remote)
We are exhibiting typical industrial robots, including "articulated robots" and "SCARA robots," as well as composite demonstration units combining these types.
Training Support
We offer training for OVR small robot operation, the MRC01 robot controller that allows for easy robot control, and the MRC Studio programming software. We offer product and programming consultations.
Need Help Starting Your Automation Project? We're Here for You
Need a hand getting your automation project off the ground?
Our team of robot automation experts are ready to guide you - whether you're just starting out or looking to optimize an existing setup.
Book a free session with us to get your questions answered and discover the best solution tailored to your application.
