Case Study - Syringe Pump Dispensing Volume Accuracy Improvement
Issue: Improving the Accuracy of the Dispensing Volume
For applications that dispense liquids, such as blood and chemical solutions, standard 2-phase (1.8°) or 5-phase stepper motors (0.72°) may not be precise enough due to friction load.
Challenge:
- The Amount of Liquid Dispensed May Vary
- Though It is Possible to Make Improvements by Changing the Mechanism, Avoiding Changing the Size of the Mechanism Part or Motor As Much as Possible is Desired
Solution: PKP Series High-Resolution Type
Resistant to Frictional Load and Realizes High-Precision Positioning
Contributes to Improved Accuracy of the Dispensing Volume
Stepper motor PKP Series high-resolution type is resistant to frictional load and realizes high-precision positioning. Contributes to improved accuracy of dispensing volume in syringe pumps, etc.

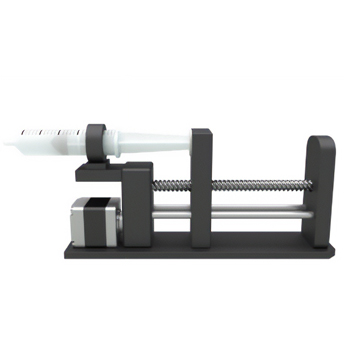

Specific Application Examples
Structure Resistant to Frictional Load

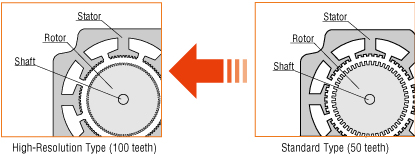

The high-resolution type is a motor with a basic step angle of 0.9˚ for 2-phase and 0.36˚ for 5-phase. Compared to the standard type, the rotor has twice as many teeth. Therefore, the displacement angle for frictional load can be reduced. The pump operates stably even in applications such as syringe pumps, which are constantly subjected to frictional loads, thereby improving the accuracy of the dispensing volume.

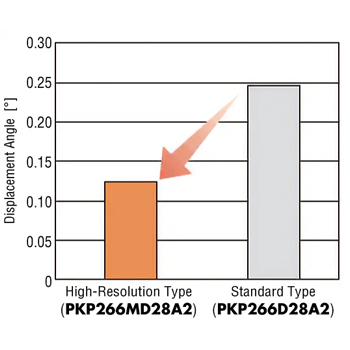

Comparison of Displacement Angles Due to Frictional Load (Reference values)
