Low Power Consumption AC Axial Fans - EC Fans - EMR Series
Low Power Consumption AC Axial Fans - EC Fans - EMR Series

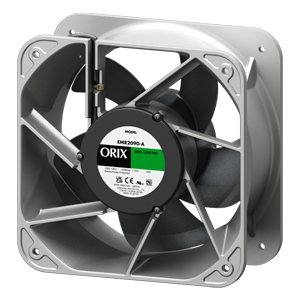

The EMR Series fans are equipped with a brushless motor and feature low power consumption, low heat generation, large air flow, and high static pressure. These AC input fans are offered in 180 mm or 200 mm frame sizes and have an estimated life up to 60,000 hours. Available with alarm and variable speed functions.
- Single-Phase 100-120 VAC, Single-Phase 200-240 VAC/Three-Phase 200-240 VAC
- Available in 7.09 in (180 mm) and 7.87 in (200 mm) frame sizes
- Available in Standard Speed and High Speed Types
- Equipped with a brushless motor, low power consumption, low heat generation, large air flow, and high static pressure
- Estimated life up to 60,000 hours
- Alarm and variable speed functions available
Brushless Motor Equipped to Save Energy and Increase Performance
The EC fan EMR Series equipped with a brushless motor is high efficiency, high performance cooling fan with energy saving, long life, low noise, and lightweight features. The fan with low-speed alarm improves equipment reliability, and the variable speed operation enables further energy saving and noise reduction. It also contributes to solving issues such as the need to cool as efficiently as possible with a single lightweight fan, while also reducing electricity costs and other costs.
The Effects of Using the EMR Series
Annual Power Consumption (Compared to frame size 200 mm fans)
| Power Consumption (kWh/year) | CO2 Emissions (kg/year) | Electricity Costs (dollars/year) | |
|---|---|---|---|
Conventional Products |
306 |
200 |
$62.82 |
EMR Series |
438 |
140 |
$43.96 |
- Calculated with daily operating hours at 24 hours, operating days per year at 365 days, the electricity-CO2 emission factor at 0.457 kg-CO2/kWh, and electricity rate of 22.68 JPY/kWh (converted to USD dollars as of January 15, 2026).
- Comparison between EMR2090-A and MRS20-BUL
EC Fan
EMR Series
Power Consumption |
CO2 Emissions |
Power Consumption Reduced by Up to 48%*
By using brushless motors, power consumption is greatly reduced compared to conventional products, while having the same characteristics. Furthermore, the brushless motor generates low heat, the heat generated by the fan drive circuit can be reduced. In addition, the same characteristics can be achieved regardless of what frequency is used.
*Comparison between conventional products at 50 Hz and EMR Series with frame size 200 mm at rated speed
Frame Size 180 mm
Specifications Comparison
| Applicable Products | EMR Series (EMR1865-A) |
Conventional Products* 50 Hz |
|---|---|---|
| External View |  |
 |
Power Consumption [W] |
29 |
37 |
| Rotation Speed [r/min] | 3000 | 2720 |
| Maximum Air Flow [m3/min] | 9.0 | 8.2 |
| Maximum Static Pressure [Pa] | 154 | 149 |
Noise [dB (A)] |
55 | 59 |
*MR18-BC with finger guards (FG18D) attached on both sides.

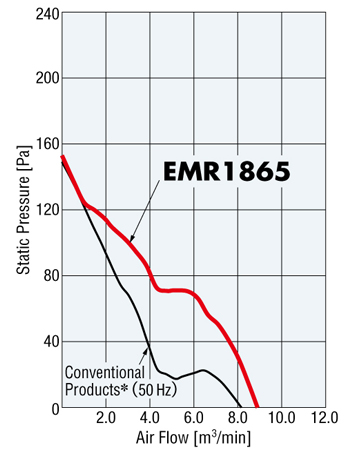

Air Flow Characteristics Comparison
Frame Size 200 mm
Specifications Comparison
| Applicable Products | EMR Series (EMR2090-A) |
Conventional Products* 50 Hz |
|---|---|---|
| External View |  |
|
Power Consumption [W] |
39 |
75 |
| Rotation Speed [r/min] | 2800 | 2850 |
| Maximum Air Flow [m3/min] | 19.9 | 13.2 |
| Maximum Static Pressure [Pa] | 275 | 221 |
Noise [dB (A)] |
57 | 56 |
*MRS20-BUL

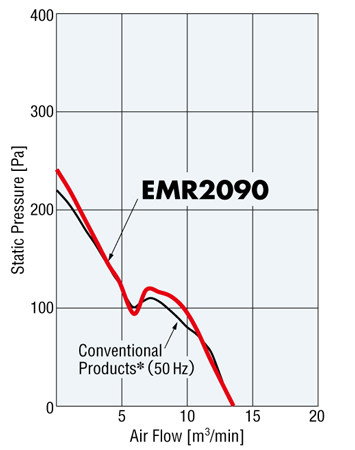

Air Flow Characteristics Comparison
High Speed Type with Cooling Capacity Equivalent to Larger 250 mm Frame Size*
It greatly exceeds the air flow of conventional AC axial flow fans and has cooling capacity equivalent to a fan with a frame size 250 mm which is one size larger. Solve thermal problems with customer equipment caused by high heat generation and high density.
*High speed type is applies to products with a frame size 200 mm.
Size Comparison
| Applicable Products | EMR Series (EMR2090H-A) |
Product to Compare* 50 Hz |
|---|---|---|
| External View | |
 |
Size |
200 mm - 90 mm thick |
250 mm - 120 mm thick |
*MRE25-en

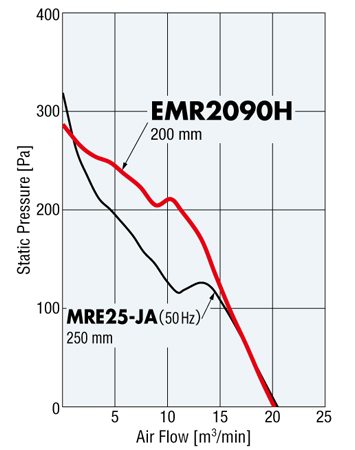

Air Flow Characteristics Comparison
Long Life With Estimated Life of 60,000 Hours (Approx. 6 years)
EMR Series axial fans use brushless motors to consume less power and generate less heat. This leads to fewer fan replacements, reduced maintenance costs, and a long lifespan of an estimated 6 years or 60,000 hours.
EMR Series Estimated Life
| Frame Size | Estimated Life [Hours] |
|---|---|
180 mm |
40,000 |
200 mm |
60,000 |

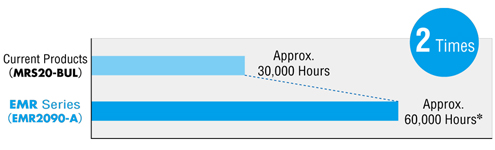

Life Comparison Between Conventional Products and EMR Series (Example)
*Estimated life is calculated based on rated voltage, rated speed, maximum air flow, 60 °C, and life of bearing grease and electrolytic capacitor.
Mass Reduced by Approximately 40%
The compact and powerful brushless motor has considerably less mass than conventional products.
Its light weight facilitates fan installation and replacement.
| Frame Size | Mass [kg] | |
|---|---|---|
| EMR Series |
Current Products | |
| 180 mm | 1.3 |
2.2* |
200 mm |
1.6 |
2.5 |
*The current product with a frame size 180 mm mass is the value with two finger guards attached.
Energy Saving and Low Noise Can be Achieved by Adjusting Air Flow
Fans with variable speed function* can adjust the air flow of the fan.
Power consumption and noise can be reduced by appropriately adjusting the air flow.
*The products equipped with variable speed function are applicable to variable speed types with low-speed alarms with a frame size of 180 mm (EMR1865-□) and 200 mm (EMR2090VMH-A).

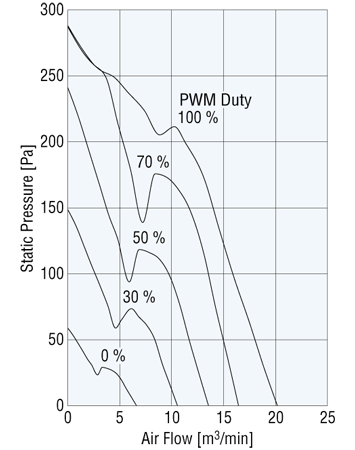

Air Flow - Static Pressure Characteristics for Frame Size 200 mm (Reference Values)
| Rotation Speed [r/min] |
Maximum Air Flow [m3/min] |
Maximum Static Pressure [Pa] |
Power Consumption [W] |
Noise Level [dB (A)] |
|---|---|---|---|---|
4200 |
19.9 |
275 |
102 |
67 |
3200 |
15.1 |
275 |
50 |
61 |
2100 |
9.8 |
133 |
19 |
53 |
Speed Setting Method
Rotation speed can be set as follows. Products with a frame size of 180 mm can perform 2-speed operation*1 with ON/OFF switches, etc. Please refer to the operating manual for details.
| Frame Size | Rotation Speed [r/min] | Variable Speed Operation | |||
|---|---|---|---|---|---|
| External Speed Potentiometer (Sold separately) 0~20 kΩ |
External DC Voltage*2 0~5 VDC |
External PWM Signal*2 Duty 0~100 % |
Speed Controller (Sold separately) |
||
| 180 mm | 500~3500 |
• |
• |
• |
- |
200 mm (Variable speed type with low-speed alarm) |
1400~4200 |
- |
- |
• |
• |
*1 Can be set using an external speed potentiometer (sold separately), external DC voltage, or external PWM signal.
*2 Not supplied.

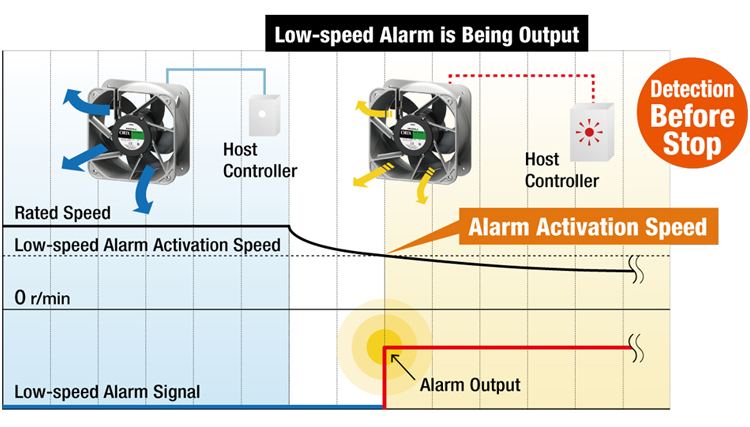

Fan With Low-Speed Alarm* Improves Equipment Reliability
The alarm output function is activated when the rotation speed drops due to unexpected circumstances such as end of service life of the cooling fan or by the ingress of foreign particles, etc.
This makes it possible to replace the fan before it comes to a complete stop.
Even if the cooling capacity of the fan is reduced, the impact on the equipment can be minimized, contributing to improved reliability of the equipment.
*Products equipped with the low-speed alarm function are applicable to low-speed alarm types and variable speed types with low-speed alarms with a frame size of 180 mm and 200 mm.
Product Lineup
Output Power |
Speed Type |
Power Supply |
Options |
Max Air Flow |
Max. Static Pressure |
||
|---|---|---|---|---|---|---|---|
|
Standard Variable Speed |
Single-Phase 100-120 VAC |
Low-speed alarm |
318 CFM |
9.0 m3/min |
0.618 inH20 |
154 Pa |
|
Standard |
Single-Phase 100-120 VAC |
Low-speed alarm |
473 CFM |
13.4 m3/min |
0.96 inH20 |
240 Pa |
High-Speed |
710 CFM |
20.1 m3/min |
1.17 inH20 |
290 Pa |
|||
Variable Speed |
|||||||
Thermostat
Thermostats automatically perform ON/OFF fan control in accordance with the temperature fluctuation inside the equipment. It helps improve the equipment's "environmental" performance relative to energy savings, noise reduction, etc.
Type |
Item |
Centigrade (°C) |
External Speed Potentiometer
Use to adjust EMR Series 180 mm axial fans speed.
Fan Speed Controller
Adjust EMR Series 200 mm axial fans rotation speed with this speed controller.
Finger Guards
Finger guards prevent fingers or foreign objects from entering the fan. Finger guards are mounted to the fan frame using bolts.
Fan Size |
Finger Guard |
7.87 in. (200 mm) |
Power Supply Cables
For use with EMR Series 180 mm AC axial fans, Single-Phase 100-120 VAC, Single-Phase 200-240/Three-Phase 200-240.
Fan Size |
Item |
Length [m (ft.)] |
7.09 in. (180 mm) |
|
[1 m (3.3 ft.)] |
|
|
[2 m (6.6 ft.)] |
|
|
|
[3 m (9.8 ft.)] |
|
|
|
[1 m (3.3 ft.)] |
|
|
|
[2 m (6.6 ft.)] |
|
|
|
[3 m (9.8 ft.)] |
